G.P.A. Italiana dial feed units with press are combined units which allow a simple automation of assembly and machining works.

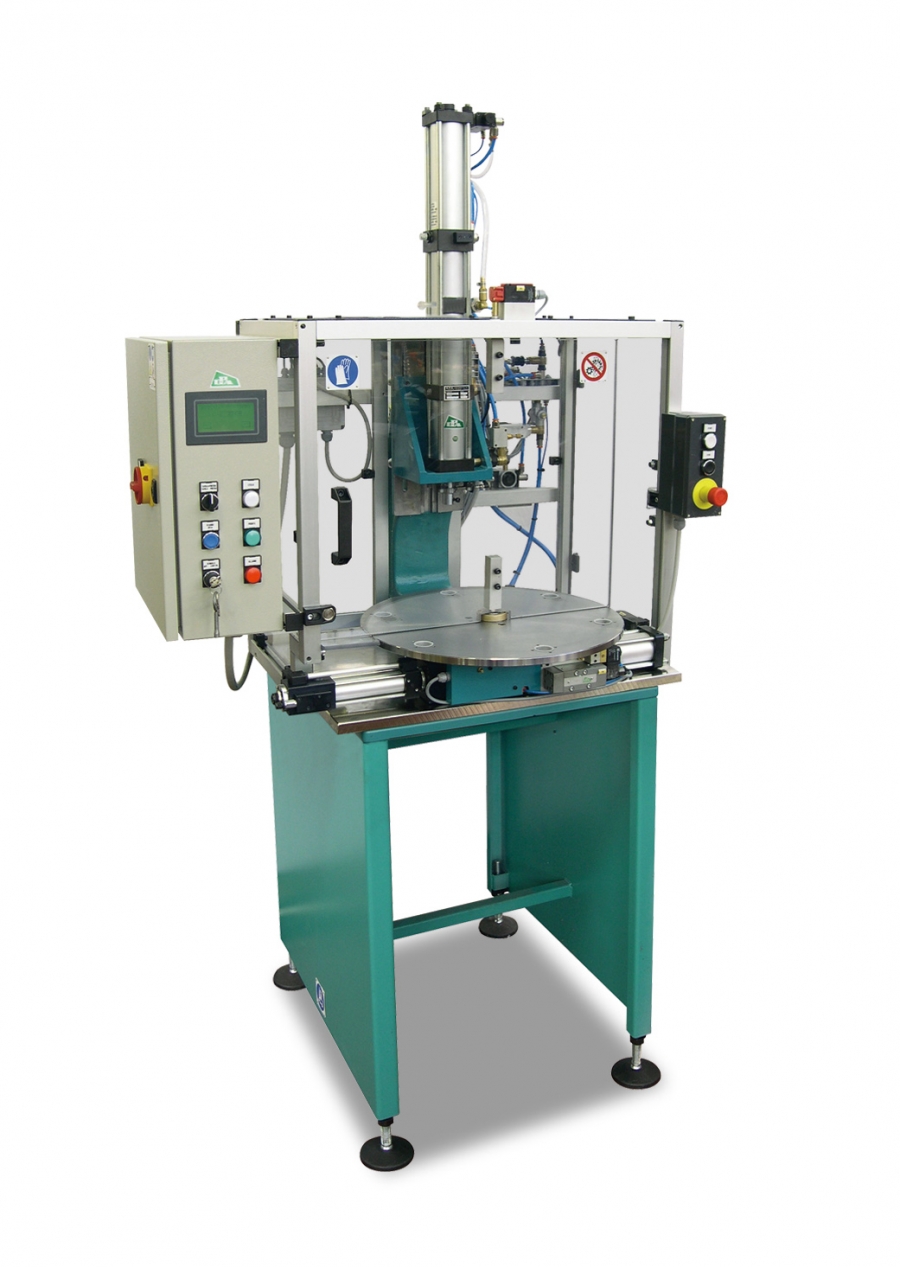

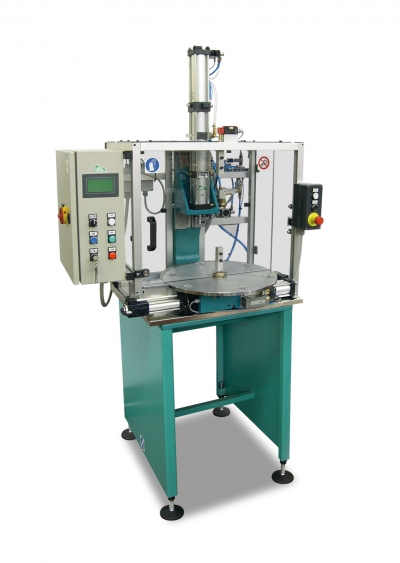

G.P.A. Italiana dial feed unit is a standard compact machine composed by a pneumatic or electric GPA rotary table and by a pneumatic or hydropneumatic press with force up to 150 kN.
They are equipped with: | - | side and top shields including front pivoting shield with openings for pieces, | | - | control board with PLC and «touch screen» operator panel. |
The dial feed units can be customized on request with:
| - | hydropneumatic presses with force up to 320 kN, | | - | handling units for piece loading and/or unloading, | | - | supplementary stations with working units or piece control, | | - | light curtains combined with double body valves for press control, | | - | force-stroke measuring circuits with graphic display. |
G.P.A. Italiana dial feed units can be delivered, on request, with control boards ready for production quality control and with factory ethernet systems making easy data exchange for production and efficiency rates as well as optimizing teleassistance operation.
|
|
